Trex Horizontal

Horizontal Fence System

>> Trex Horizontal Fencing 1

Trex Fencing Comes in Three Colors

WB Circle Seclusions

Woodland Brown

WG Circle Seclusions

Winchester Grey

Saddle Circle Seclusions

Saddle

Virtues of Trex® Horizontal Fencing

Horizontal leads the industry as the ultimate upgrade to wood fencing. With an ingenious design and solid fundamentals, Horizontal beats wood every time.

checkmark logo

Follows the grade and contours of your property.

checkmark logo

Won't rot, warp, or splinter.
Won't become food for termites.

checkmark logo

Won't need seasonal painting, sealing, or staining.

checkmark logo

Has an industry leading warranty.

Trex Horizontal fencing is a composite privacy system from the leading brand in outdoor living. Horizontal merges elements of Seclusions, the vertically-oriented fence system from Trex, and Horizons, the contemporary horizontal fence that combines the FDS-exclusive Horizons frame system with Trex composite components.

Like Seclusions, Horizontal uses a composite top rail and an aluminum-reinforced bottom rail that gives the fence an attractive cap-and-trim look. The fence has the same look on both sides and provides full privacy thanks to unique interlocking pickets.

All three of the Trex Fencing systems (Seclusions, Horizontal, and Horizons) provide unprecedented strength and longevity, virtually no maintenance requirements, and an elegance that is distinct in design.

Trex Horizontal Fencing, a unique design

The low-profile black aluminum side rails for Trex Horizontal Fencing attach to the posts to secure the pickets in place. Installation is easy. No specialty tools or previous experience required. Horizontal is also an alternative to the sleek, contemporary Trex w/Horizons Horizontal fence system. For more information about the Horizons alternative, visit the Trex w/Horizons product page.

Profiles

>> Trex Horizontal Fencing 2

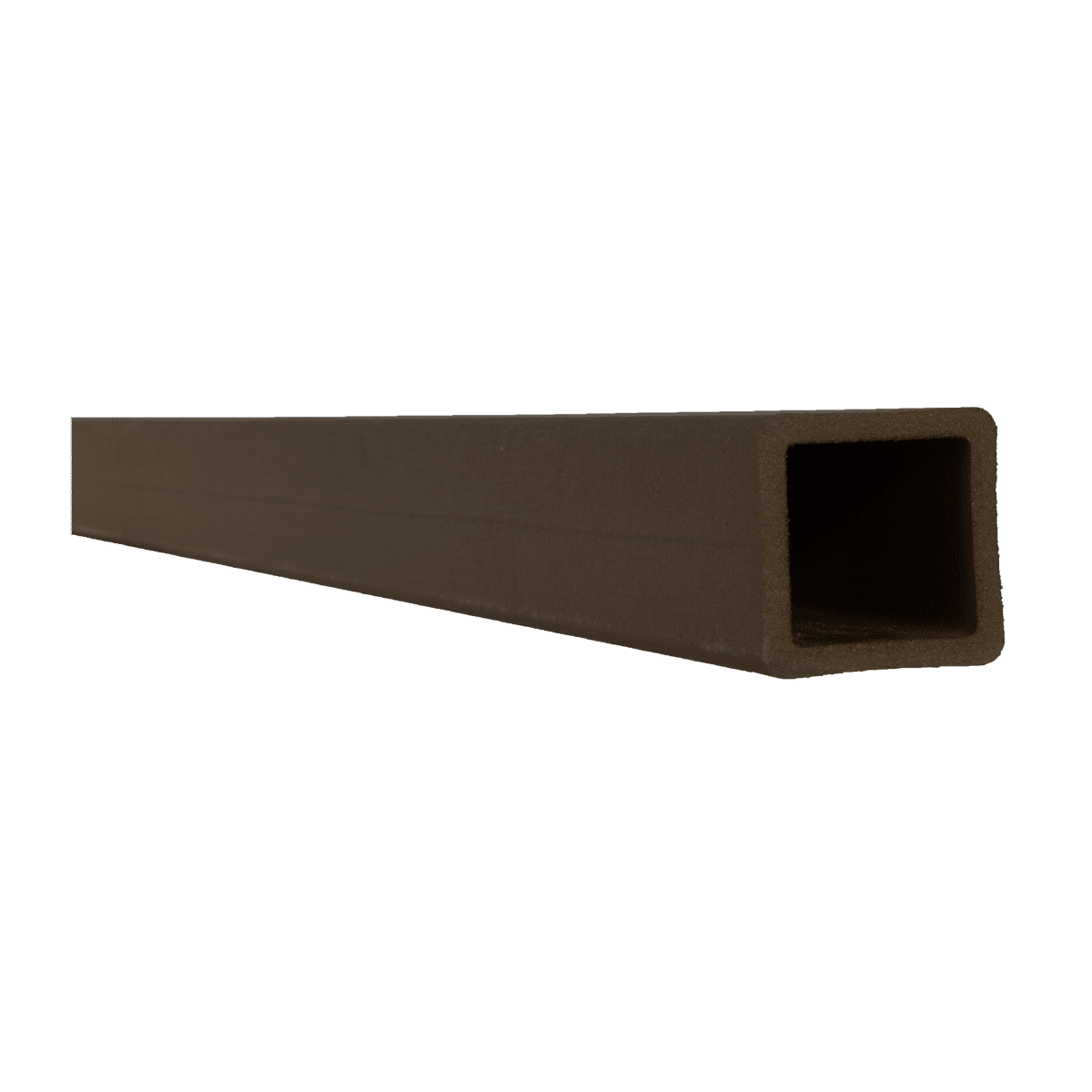

Post

The three styles of Trex Fencing Post Caps

Post Cap

Aluminum Post Top Plate for Trex Fencing

Plate (Post Cap Alternative for Flush Top)

>> Trex Horizontal Fencing 3

Top Rail

Aluminum Top Rail Insert for Trex Horizontal Fencing

Aluminum Horizontal Rail Insert (Top)

Trex Seclusions Aluminum Bottom Rail Insert

Aluminum Horizontal Rails Insert (Bottom)

Composite Pickets for Trex Fencing

Pickets / Bottom Rail Covers

Aluminum Vertical Rails for Trex Horizontal Fencing

Aluminum Vertical Rails

Brackets for Trex Fencing Seclusions and Horizontal

Brackets / Angle Adaptors

Installation

Ready to get started? We’re here to help. If you are preparing for the installation of your Trex Horizontal Fencing in the our installation guide, tips & tricks, supplemental construction information, and step-by-step video will help you through the process. Building a Trex horizontal fence isn’t difficult and these installation resources will make it even easier. Need additional support? Give us a call at 877-700-8739. So, get your tool belt on and be prepared for an amazing new fence!

INSTALL GUIDE

Trex Horizontal Fencing Installation Guide

DESIGN DIFFERENCE - HORIZONTAL and HORIZONS

Trex Horizontal Fencing Installed Panel with logo

Composite top and bottom rails. Aluminum bottom rail insert. Aluminum side rails. Click for Trex Horizontal Fencing install guide.

Trex Horizons Horizontal Fence Installed Panel with logo

Galvanized steel top and bottom rails. Galvanized steel side rails. (Click for Horizons Horizontal install guide).

INSTALLATION TIPS

INSTALLATION GUIDE

Trex Horizontal Fencing Installation Guide

SHOP DRAWING

A shop drawing of a Trex Seclusions Horizontal Fence in Exploded View with a materials list

CONCRETE POST MOUNT

>> Trex Horizontal Fencing 4

EMBEDDED PIPE MOUNT

Mounting on a Wall Over Pipe

PILLAR ATTACHMENT

>> Trex Horizontal Fencing 5

COLOR VARIATION ADJUSTMENT

Trex Horizons Explanation on How To Adjust for Color Variation

DITCH SPANNING

Instructions for Trex Fencing Spanning a Ditch

INSTALLATION VIDEOS

Horizontal Installation Video

Quick Tips for Installation

SETTING POSTS
  • Trex Horizontal Fencing post centers: 8′.
  • Posts do not require internal reinforcement except for gate hinge posts or fences taller than 8′.
  • Set posts in ground with concrete.
BUILDING FENCE
  • Fence height is adjustable by cutting posts, rails and pickets.
  • Cut composite with regular wood-cutting blades.
  • Cut aluminum with non-ferrous blade.
  • If pickets do not interlock evenly, rip cut the bottom picket and screw into bottom rail.
  • Fence can be installed on a slope. This will require cutting pickets and rails which can be accomplished most quickly with a table and jig.
OTHER DETAILS
  • Trex Horizontal Fencing pre-built gates are available.
  • If installing in high heat, high humidity areas, pickets may swell and warp. Add a back bracing rail to reduce picket deflection (contact FDS for more details).

All three designs of Trex fencing offer full privacy, easy installation and longevity with little to no maintenance.  Looking for alternative designs? Learn more about Seclusions and Horizons.

Trex Horizontal Fencing - Designed for Durability

Trex Seclusions Horizontal Fencing installed with a beautiful backyard

Who said that performance and style had to be mutually exclusive? Trex Horizontal Fencing was developed to offer consumers a highly durable fence with a completely unique design. Like all Trex products, form and function both matter. Interested in buying a Trex Horizontal fence? Contact Us today!
