Fence Installation Resources - Trex® w/Horizons (Install Guides)

Horizontal Fence - Horizons Fence System Logo

Ready to get started? We’re here to help with our Horizons install guides. If you are preparing for the installation of your Trex horizontal fence with Horizons steel frames, our install guides, tips & tricks, supplemental construction information, and step-by-step videos will help you through the process. Building a Horizons fence isn’t difficult and these installation resources will make it even easier. Need additional support? Give us a call at 877-700-8739. So, get your tool belt on and get prepared for an amazing new fence!

INSTALL GUIDE

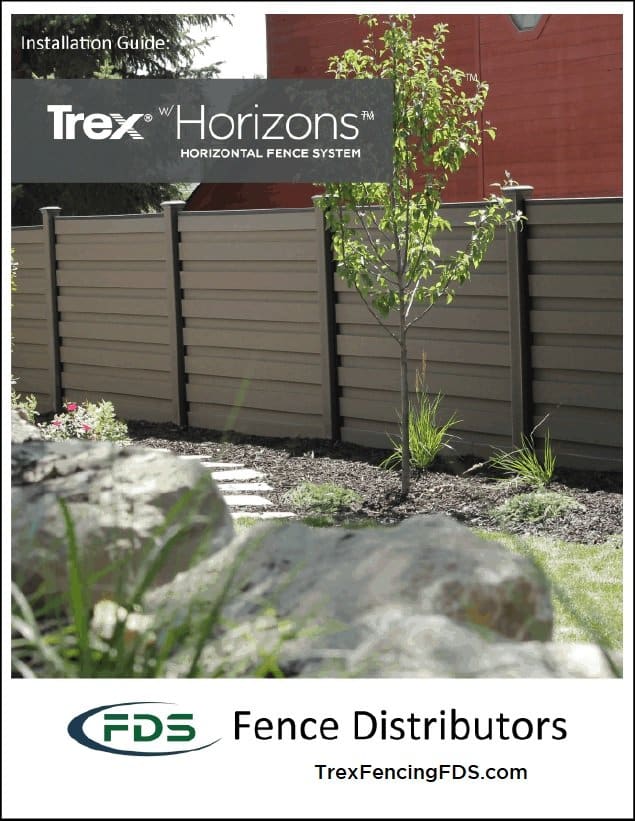

Trex Horizons Installation Guide Front Cover

MATERIALS CALCULATOR

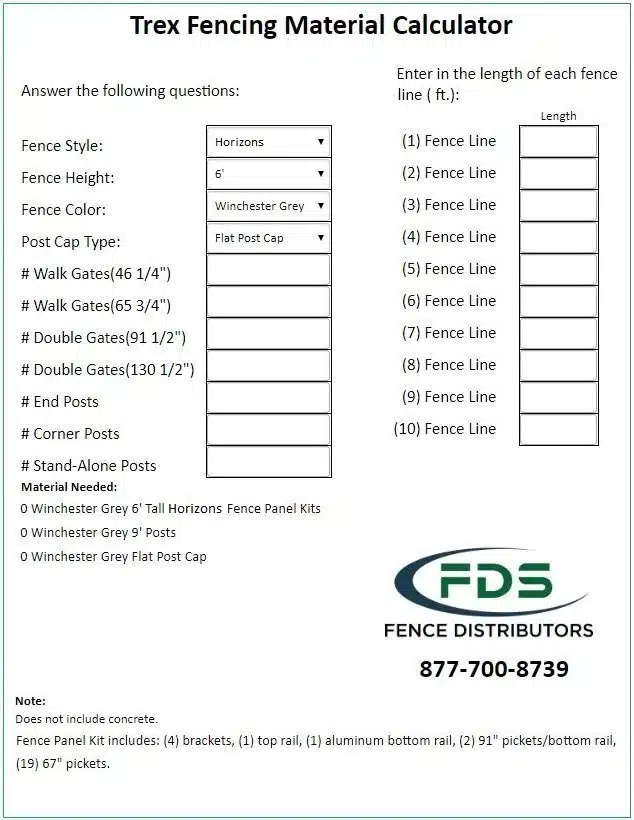

Trex Horizons Calculator

INSTALLATION TIPS

ARCHITECTURAL DRAWINGS

>> Horizons Install Guides 1

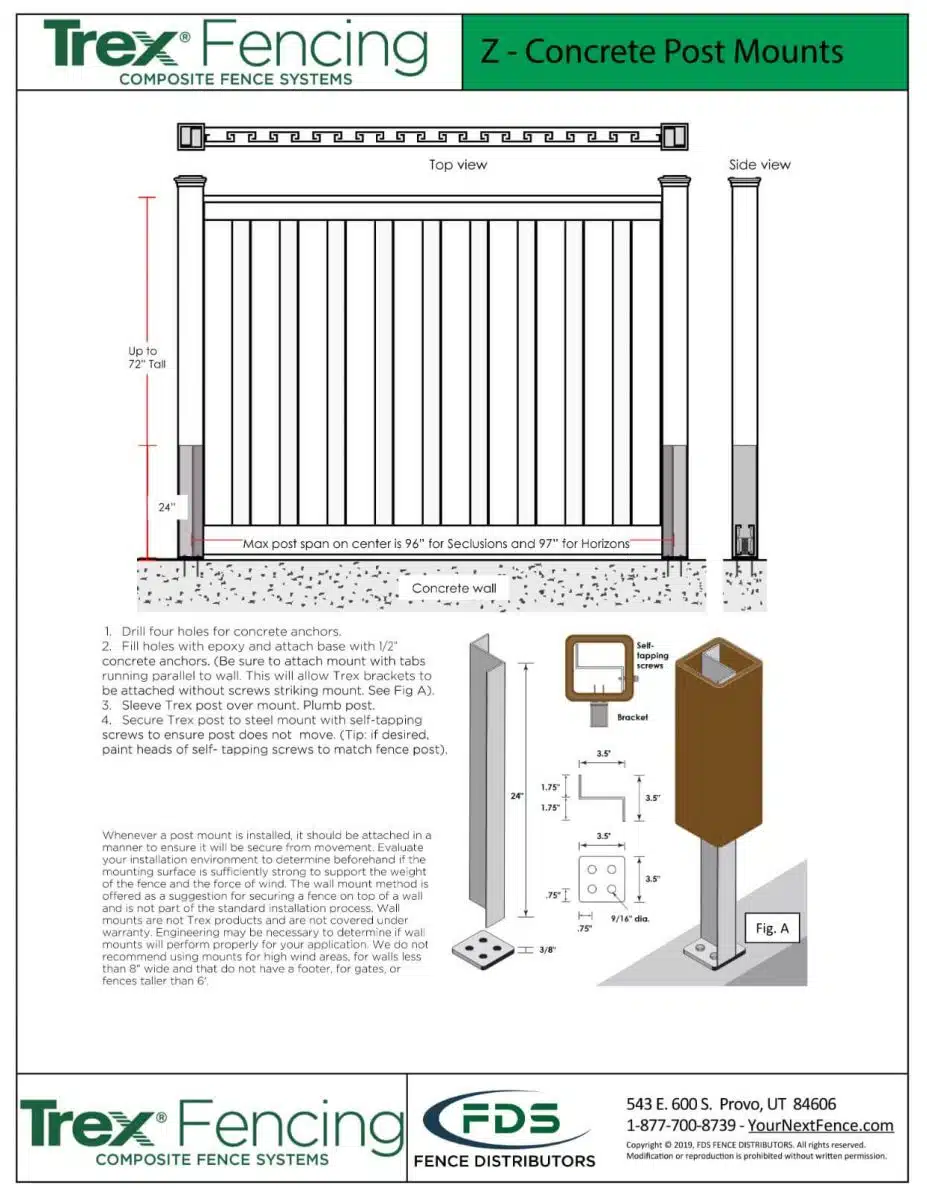

CONCRETE POST MOUNT

>> Horizons Install Guides 2

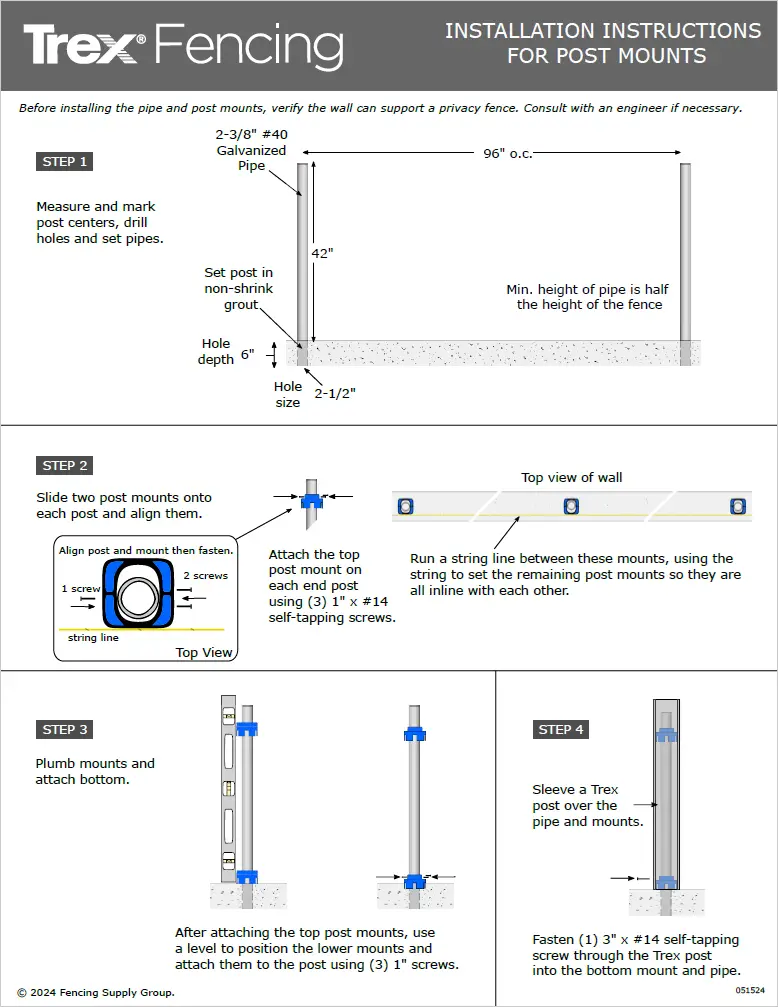

NO DIG POST MOUNT

>> Horizons Install Guides 3

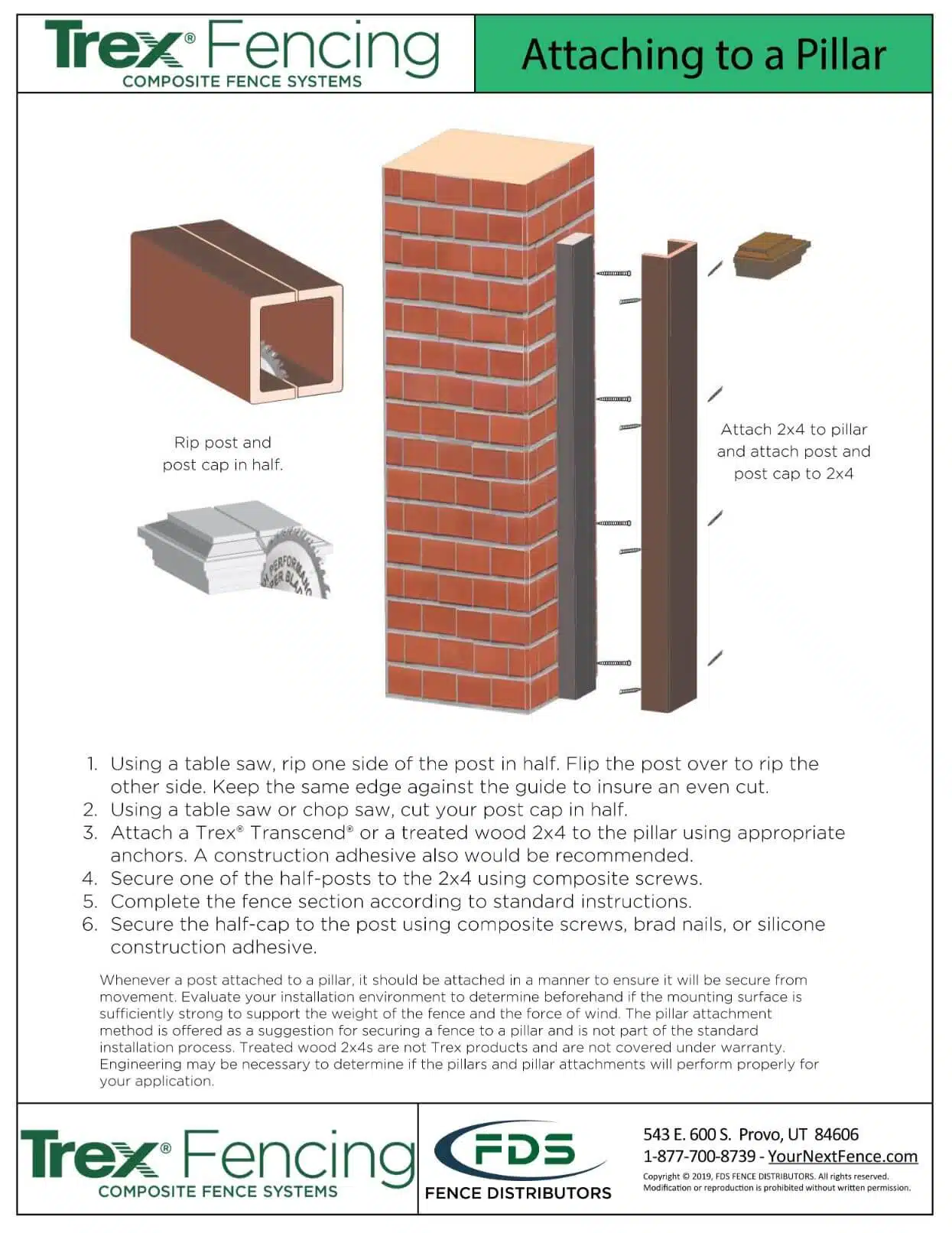

PILLAR ATTACHMENT

>> Horizons Install Guides 4

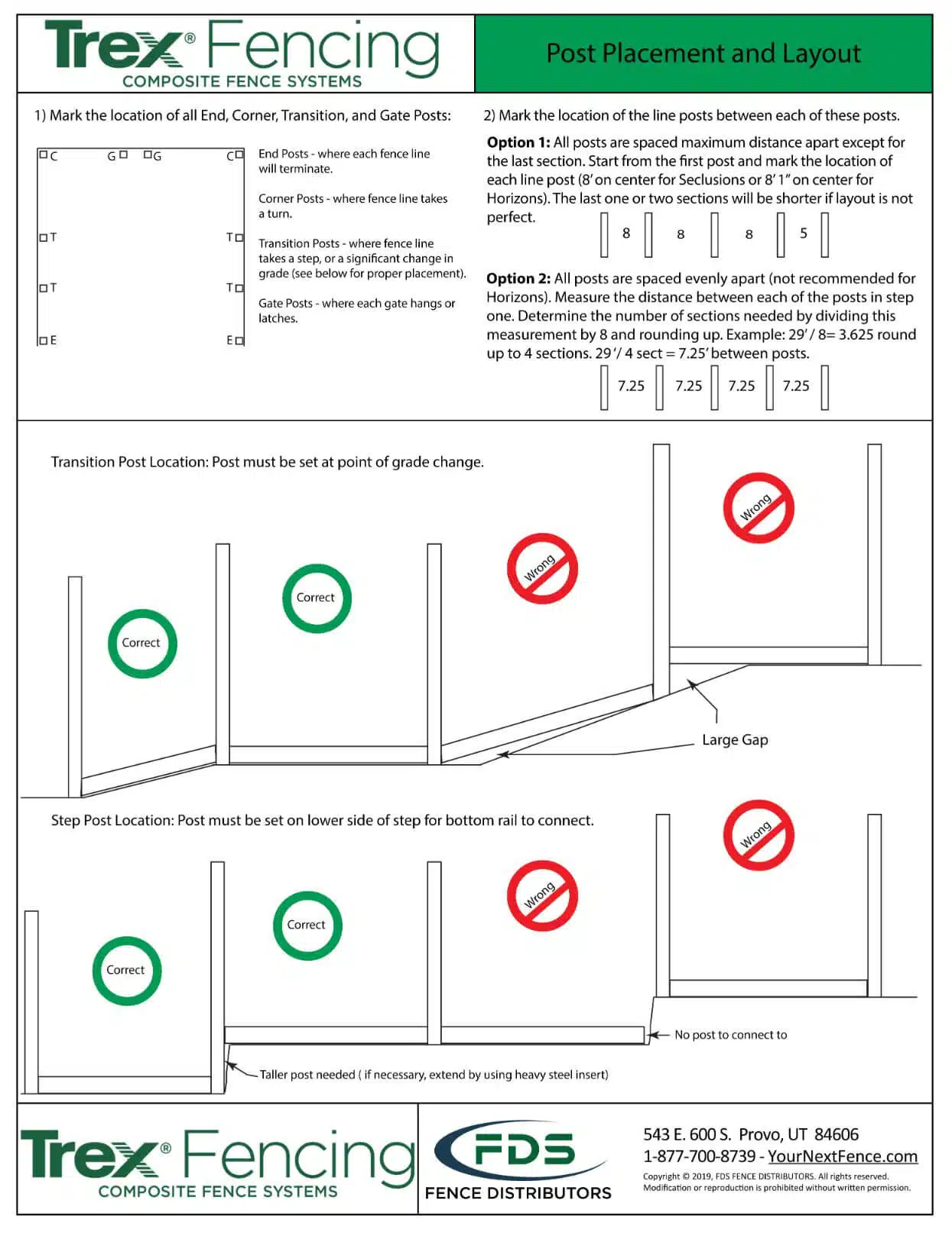

POST PLACEMENT / LAYOUT

>> Horizons Install Guides 5

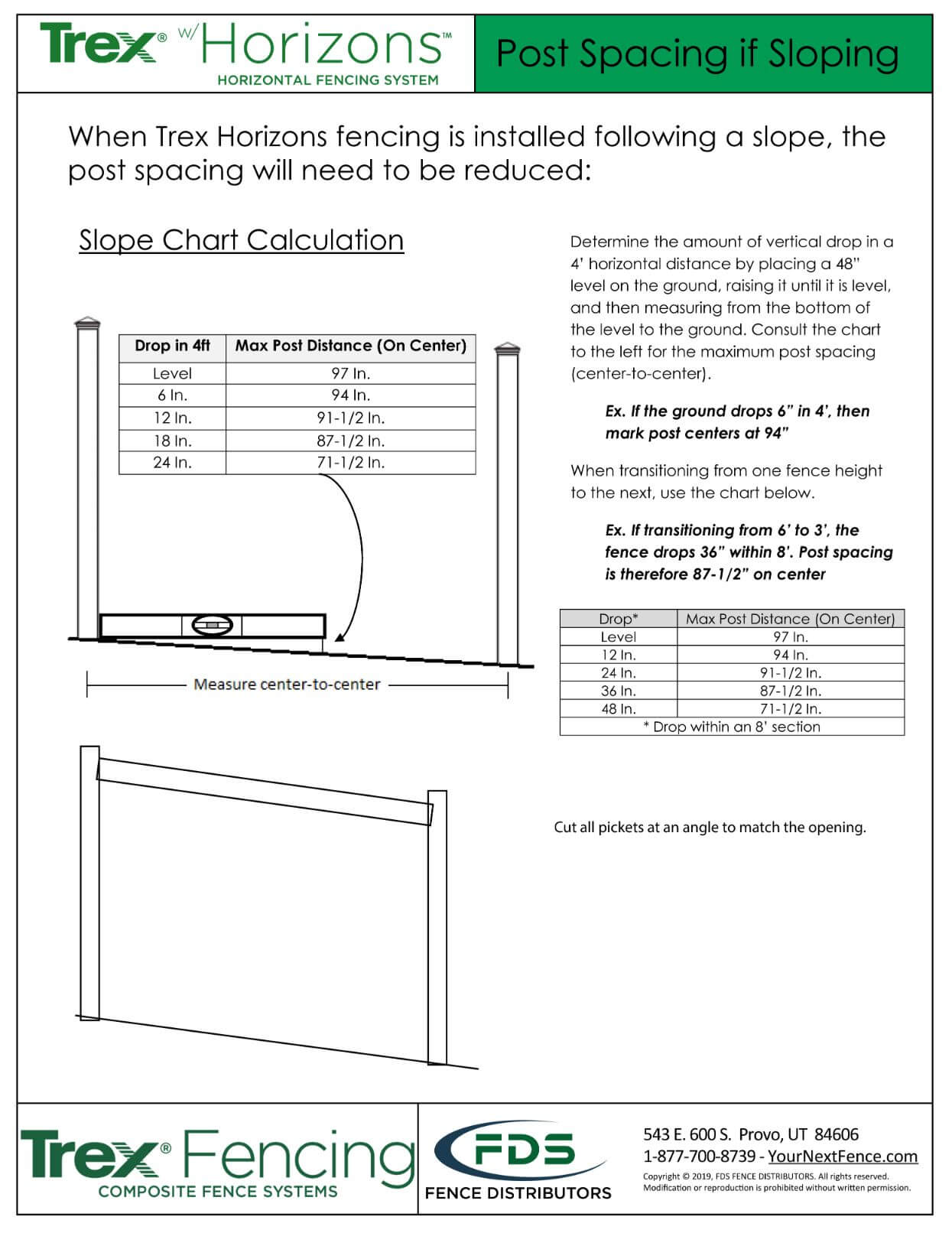

POST SPACING ON SLOPES

>> Horizons Install Guides 6

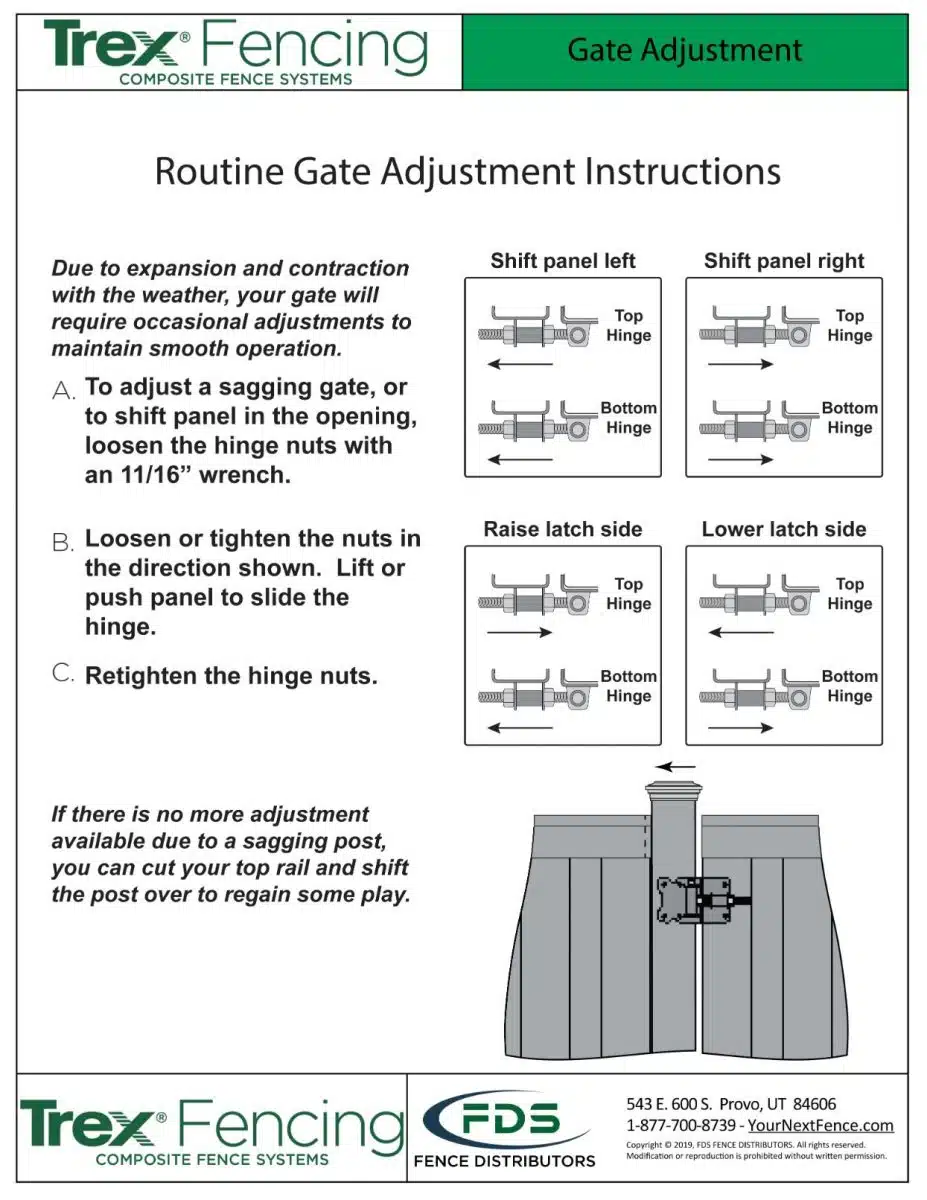

GATE ADJUSTMENT

>> Horizons Install Guides 7

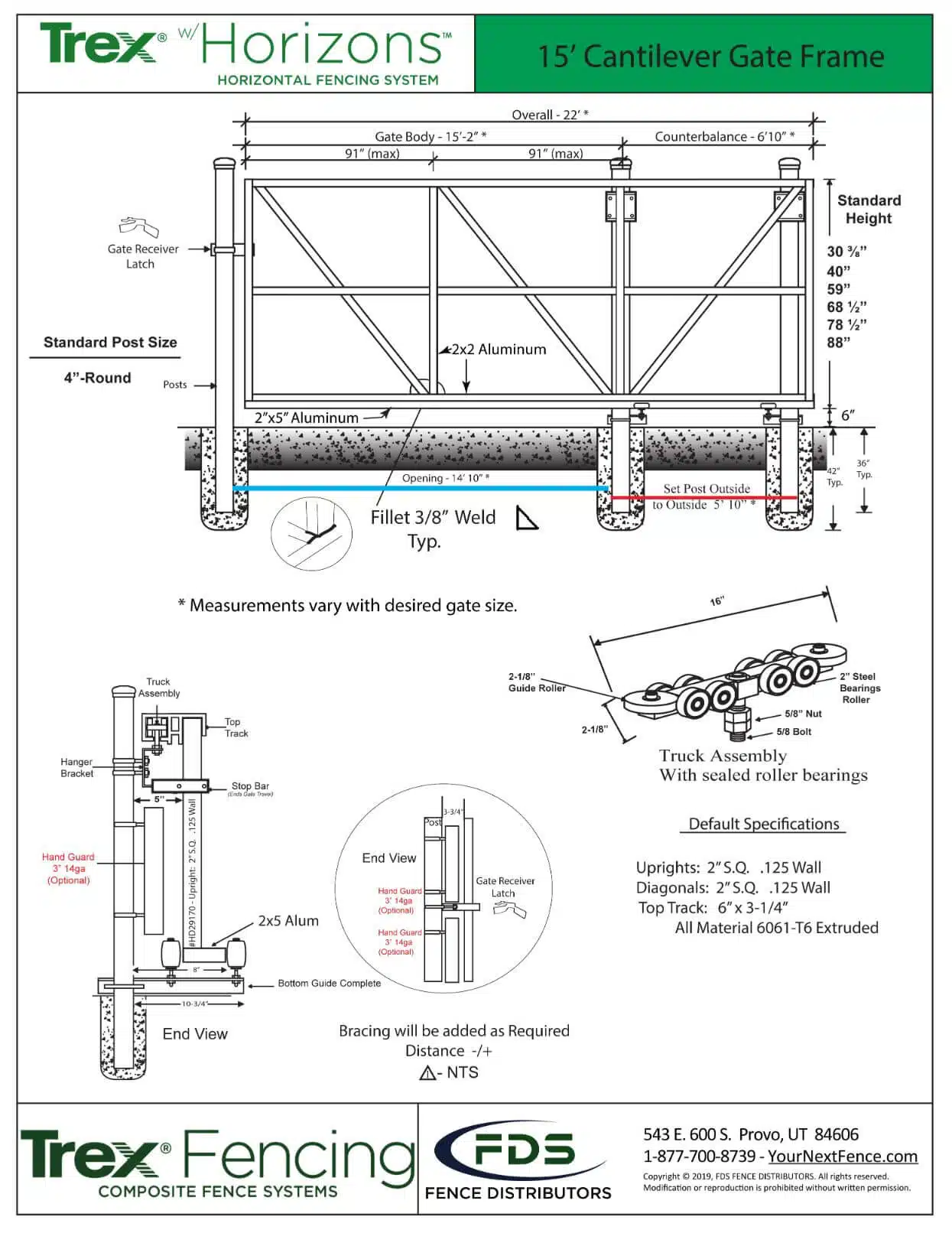

CANTILEVER GATE FRAME

>> Horizons Install Guides 8

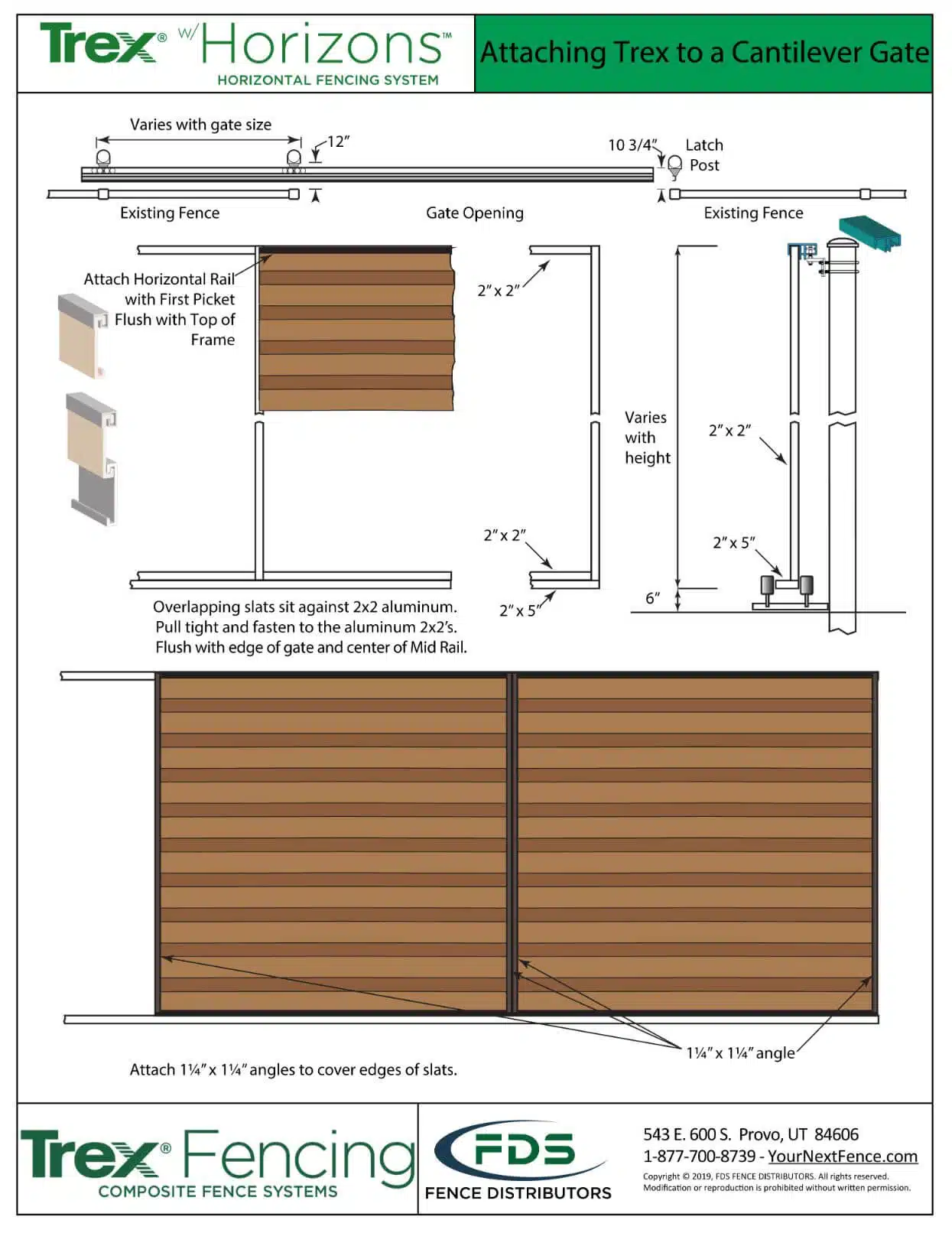

CANTILEVER GATE ATTACHMENT

>> Horizons Install Guides 9

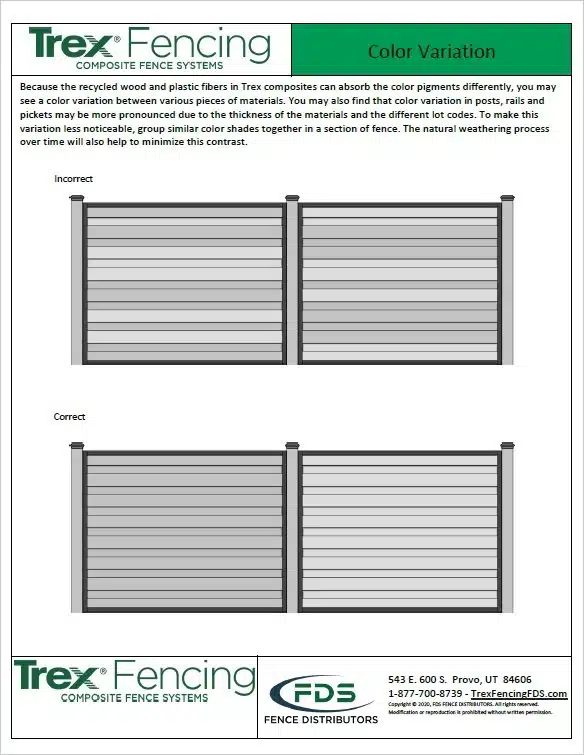

COLOR VARIATION ADJUSTMENT

Trex Horizons Explanation on How To Adjust for Color Variation

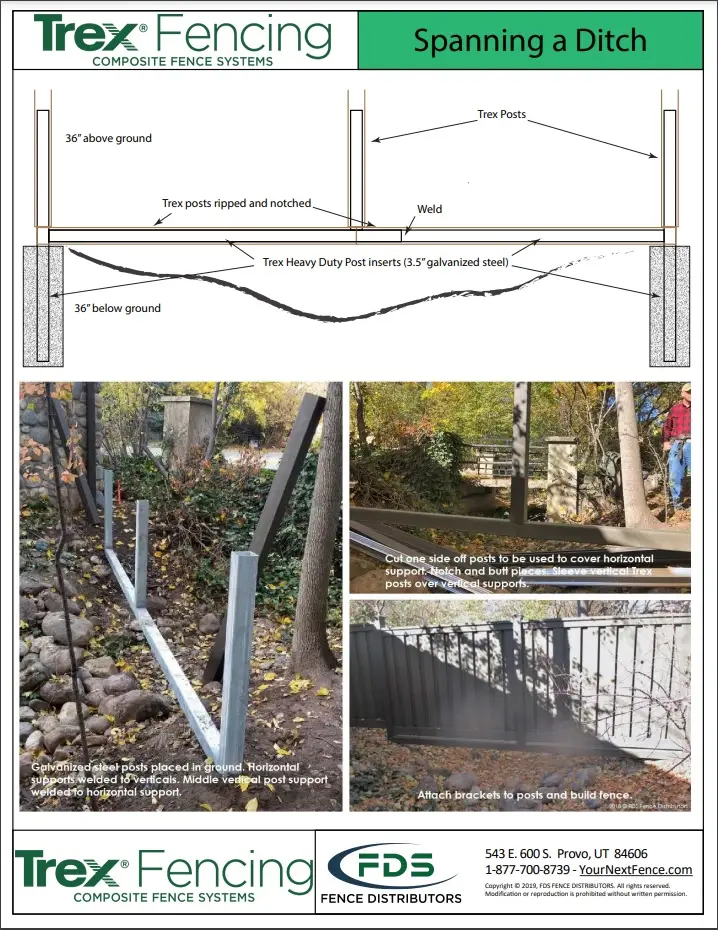

DITCH SPANNING

Instructions for Trex Fencing Spanning a Ditch

INSTALLATION VIDEOS

Brief Install Overview

Horizons Install Video

INSTALLATION VIDEOS

Brief Install Overview

Horizons Install Video

Horizons Install Video (Spanish)

Brief Install Overview (Animated)

Horizons Install Video (Animated)

Horizons Install Video (Spanish, Animated)

Notes:

The Horizons Fence System is an FDS Fence Distributors exclusive product and carries a separate warranty. Visit the warranty page for information regarding Trex and Horizons components.

Standard Horizons frames and fasteners are made of powder-coated, galvanized steel. Standard Horizons should not be installed within five miles of  a body of salt water or in close contact with the ground (adapt the bottom rail if necessary as described in the installation guide). Visit the warranty page for additional details. Stainless steel frame components are available as an alternative to standard Horizons frames and screws.

If the fence is being installed or has been installed in a hot, humid climate, the pickets may experience some deformation. In order to mitigate the possibility or to help correct the issue, a back bracing rail can be installed. For more information, contact our support team at 877-700-8739.
