Architects, Engineers & Specifiers

Choose superior performance. Choose smart engineering. Choose unique design. Choose Trex®.

Architects, Engineers & Specifiers

Choose superior performance. Choose smart engineering. Choose unique design. Choose Trex®.

When it comes to fencing for commercial and government applications, Trex® Fencing is the leading composite product. Trex is manufactured to meet the rigorous demands buyers rely on for perimeter fencing, trash enclosures, utility screens, and privacy barriers. Architects include Trex Fencing in plans for a variety of reasons: durable material, distinct appearance, flexibility in design, established brand, LEED point contribution, and more.

What is Trex?

Trex Fencing is a composite fence made from a proprietary blend of 95% recycled wood fiber and plastic. This unique product eliminates the negative attributes of a typical wood fence or vinyl fence while capitalizing on their virtues. Trex Fencing never needs painting or staining, won’t rot or decay, and will not become brittle or weak with age.

Who is Using Trex Fencing?

Trex Fencing is regularly being used as a product of choice for numerous municipalities, universities, retail locations, utility companies, and others in virtually any commercial market. Some of the well known buyers of Trex Fencing which have specified Trex Fencing as the material of choice include Electrify America, Love’s Travel Stops, Panera Bread, O’Reilly Auto Parts, Tesla, and Walmart. The architects for academic institutions, such as Louisiana State University, find Trex lends itself well to campus-wide plans to upgrade trash enclosures and perimeter fencing. Schools and hospitals often require tall utility equipment enclosures and Trex gives architects a value engineering option to propose that is much more affordable and easier to maintain than a masonry wall.



An image of companies and institutions that used architects to specify Trex Fencing for their projects

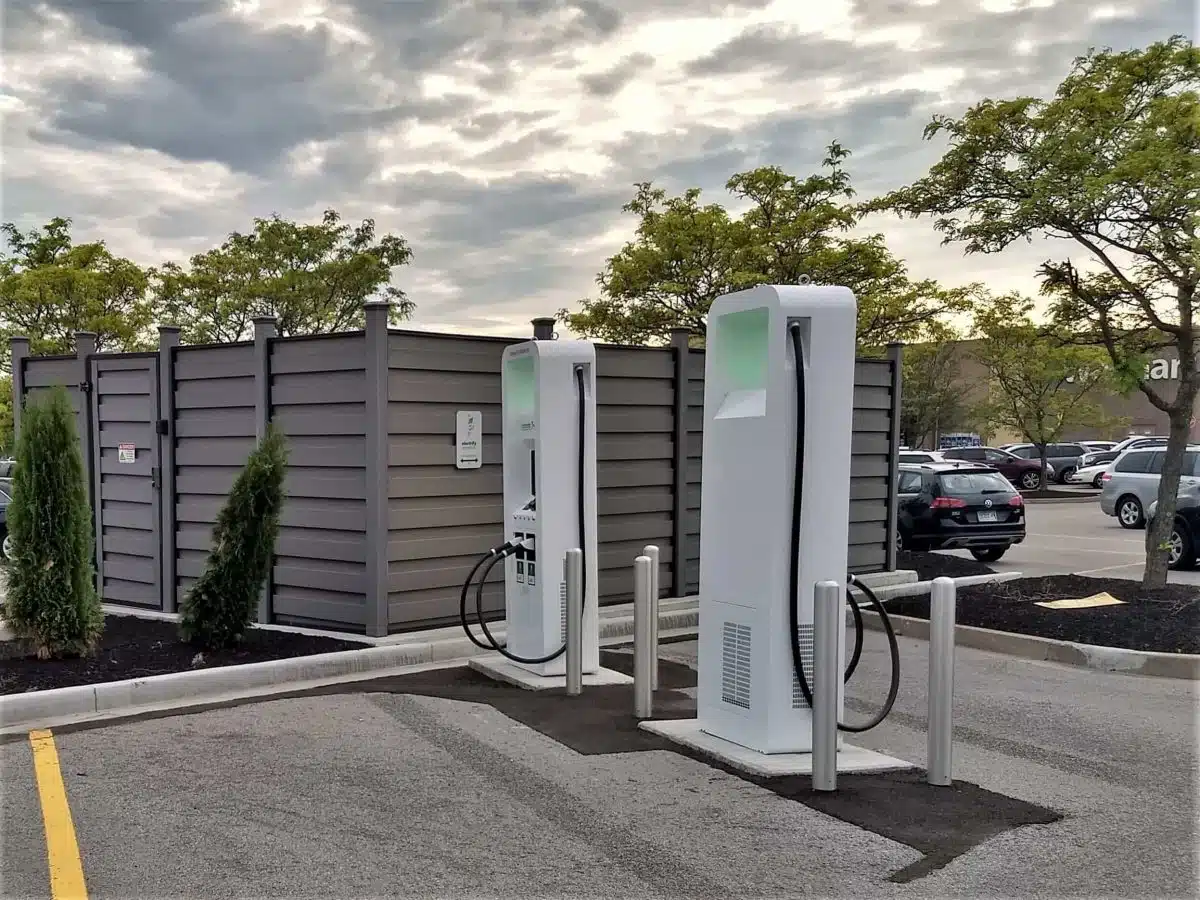

Architects designed this enclosure using Trex Fencing

Architects Choose Trex for Height Adaptation

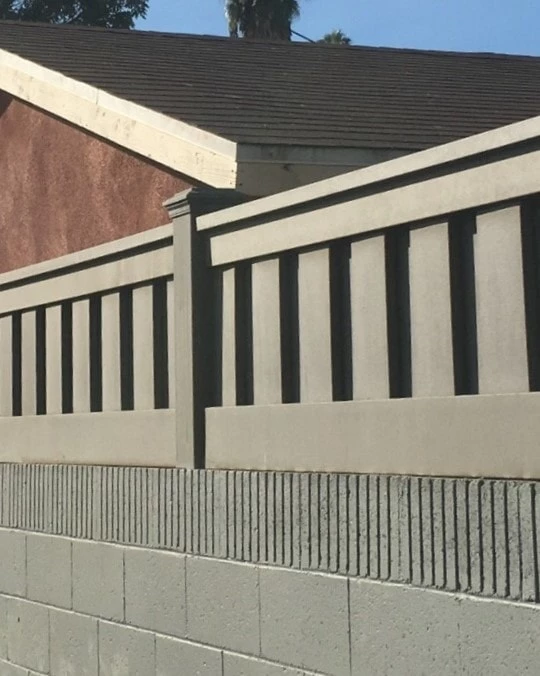

One of the best reasons architects include Trex Fencing in plans is its ability to adapt to various heights. From 2′ tall wall toppers to 12′ tall barriers, Trex Fencing is used in commercial applications to get the exact height needed. Trex fences are not made from pre-built panels, which provides a huge advantage when the fence has be adapted to fit a particular space, or needs to be shortened or heightened. While six ft. tall is the most common height for a fence, commercial projects often require eight ft. tall fences for perimeters or 10 ft. tall fence for HVAC equipment. Where necessary, steel post inserts and aluminum bottom rails give the Trex fence better rigidity and durability than other materials.

Fence Systems vs. General Design

A significant advantage of the Trex Fencing systems (Seclusions for vertical picket orientation and Horizons for horizontal board orientation) is that they are fences with common configurations, standardized installation guides, and warranties. However, the distinct design of the fence systems give architects the ability to offer clients the appearance of an attractive customized fence without having to worry about misinterpretations of the specification.

Resources Available for Architects and Specifiers

FDS Fence Distributors, the Trex fencing product partner, has created a large portfolio of drawingstechnical data and other resources for architects and specifiers to help you include Trex fencing in your project.

Looking for Help with Your Client's Next Fence Project?

Call Today to Talk to One of Our Trex Fencing Experts

FDS Fence Distributors team members can help you understand the technical aspects of Trex composite fencing, provide you with samples, and point you in the right direction for installation support. We work with clients including light retail and restaurants, universities and colleges, government, and more. Download our content and contact us today for additional support.

Download

The Architect's Booklet

Learn more about Trex Fencing for commercial and designer applications.

Picture of the cover to the Trex Fencing Architect's Booklet

Attributes of Trex Fencing

Max Post Spacing 8′ on center; can be cut down for shorter sections
Post Depth/Size 30″ x 12″ typical (depends on soil conditions and fence height)
Fence Heights Available Standard heights of 6′ and 8′, can be built from 2′ to 12′
Stepping/Sloping
The fence is made of individual components (not fixed panels) and bracketed so it can follow the grade or step; individual components can be replaced easily
Low Maintenance No painting or staining required; leading Wood/Plastic Composite
Colors Available Saddle (tan), Winchester Grey (light grey), Woodland Brown (dark brown)
Styles Available
Seclusions (vertical board-on-board design), Horizons (horizontal board-on-board design)
Green Materials
95% recycled wood fibers and plastic (e.g., plastic bags); materials and manufacturing contribute LEED points
Where is it Made USA (specifically Fernley, Nevada)
Warranty 25 year residential, 10 year commercial
Longevity of Company Trex was founded in 1995
Durability Resistant to rot and decay; 130 mph sustained wind rating, 130 mph gusts (6′ tall); design resists warping

Drawings and Specifications

Downloadable PDF and DWG files available for all fence styles and gates

SECLUSIONS

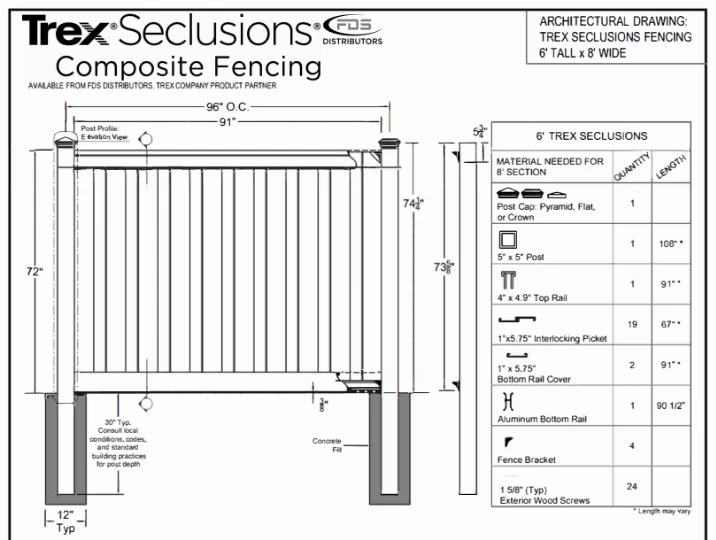

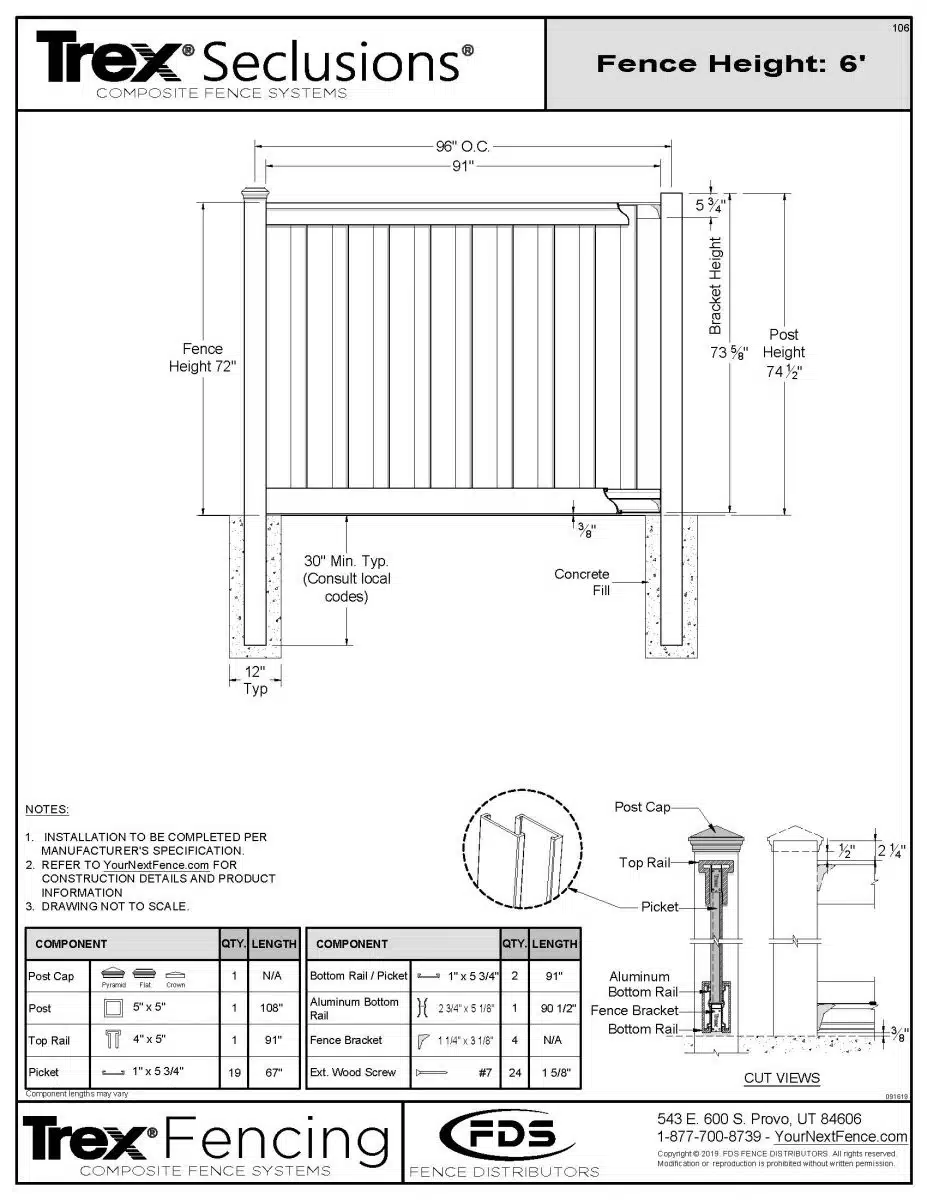

6 ft. Tall Trex Fencing Fence Panel Kit Shop Drawing

HORIZONS

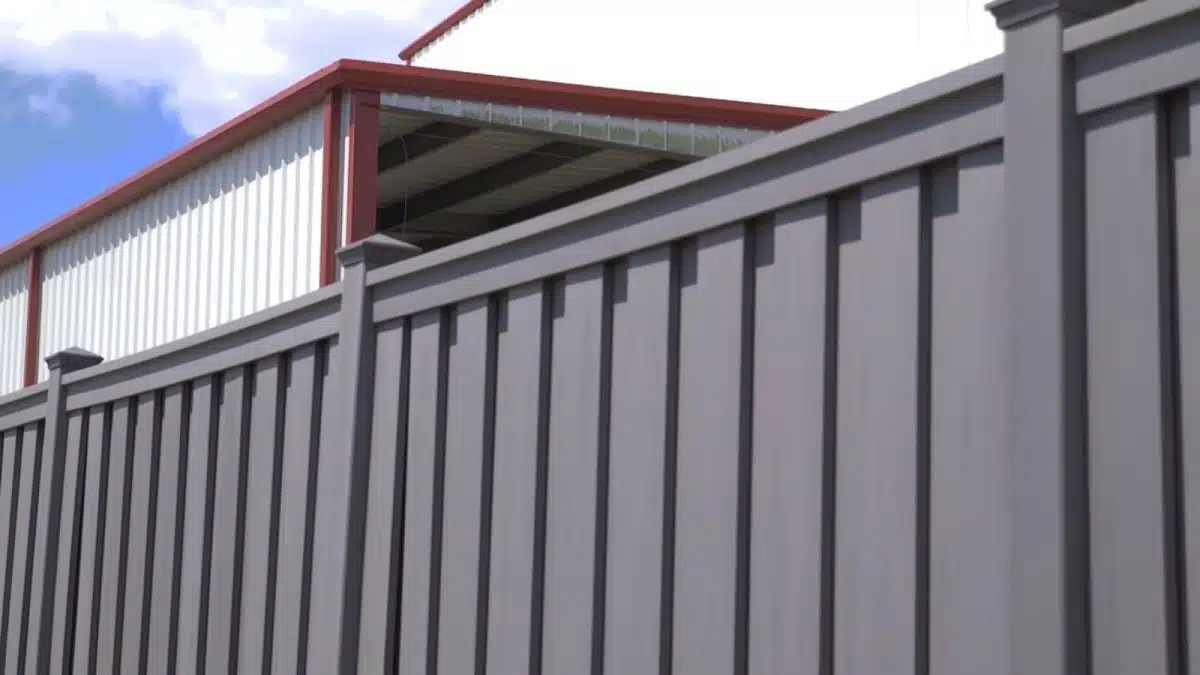

>> Architects and Engineers 1

LEED-Contributing Product

The Trex composite formula and the company itself have been environmentally responsible since the beginning.  Trex is a member of the U.S. Green Building Council (USGBC) and its products can contribute up to five LEED points to applicable projects. Trex composite combines recycled hardwood fibers and polyethylene plastic film. Only 5% of the product is comprised of non-recycled content. Additionally, Trex materials are sourced within a regional system defined by the USGBC to minimize environmental impact. The product also provides exceptional performance in innovation above the baseline requirements for green building materials.
MATERIALS & RESOURCES

Credit 4.1 Recycled Content: 10% 1 point
Credit 4.2 Recycled Content: 20% 1 point
Note: Trex’s 95% recycled content far exceeds the minimum requirements set forth by the USGBC criteria.

Credit 5.1 Regional Materials: 10% 1 point
Credit 5.2 Regional Materials: 20% 1 point

INNOVATION IN DESIGN

Credit 1 LEED Innovation Credit 1 point

TESTIMONIAL

CASE STUDY

Case study for Trex Fencing for Highlands Ranch Metro District HOA
