TREX® SECLUSIONS INSTALLATION RESOURCES

Ready to get started? We’re here to help. If you are preparing for the installation of your Trex Seclusions fence, our Trex Fencing installation guides, tips & tricks, supplemental construction information, and step-by-step videos will help you through the process. Building a Trex fence isn’t difficult and these installation resources will make it even easier. Need additional support? Give us a call at 877-700-8739. So, get your tool belt on and be prepared for an amazing new fence!

INSTALLATION TIPS

INSTALLATION GUIDE

Trex Seclusions Installation

ARCHITECTURAL DRAWINGS

An example shop drawing for Trex Seclusions Drawing

CONCRETE POST MOUNT

>> Seclusions Install Guides 2

EMBEDDED PIPE MOUNT

Mounting on a Wall Over Pipe

PILLAR ATTACHMENT

>> Seclusions Install Guides 3

POST PLACEMENT / LAYOUT

>> Seclusions Install Guides 4

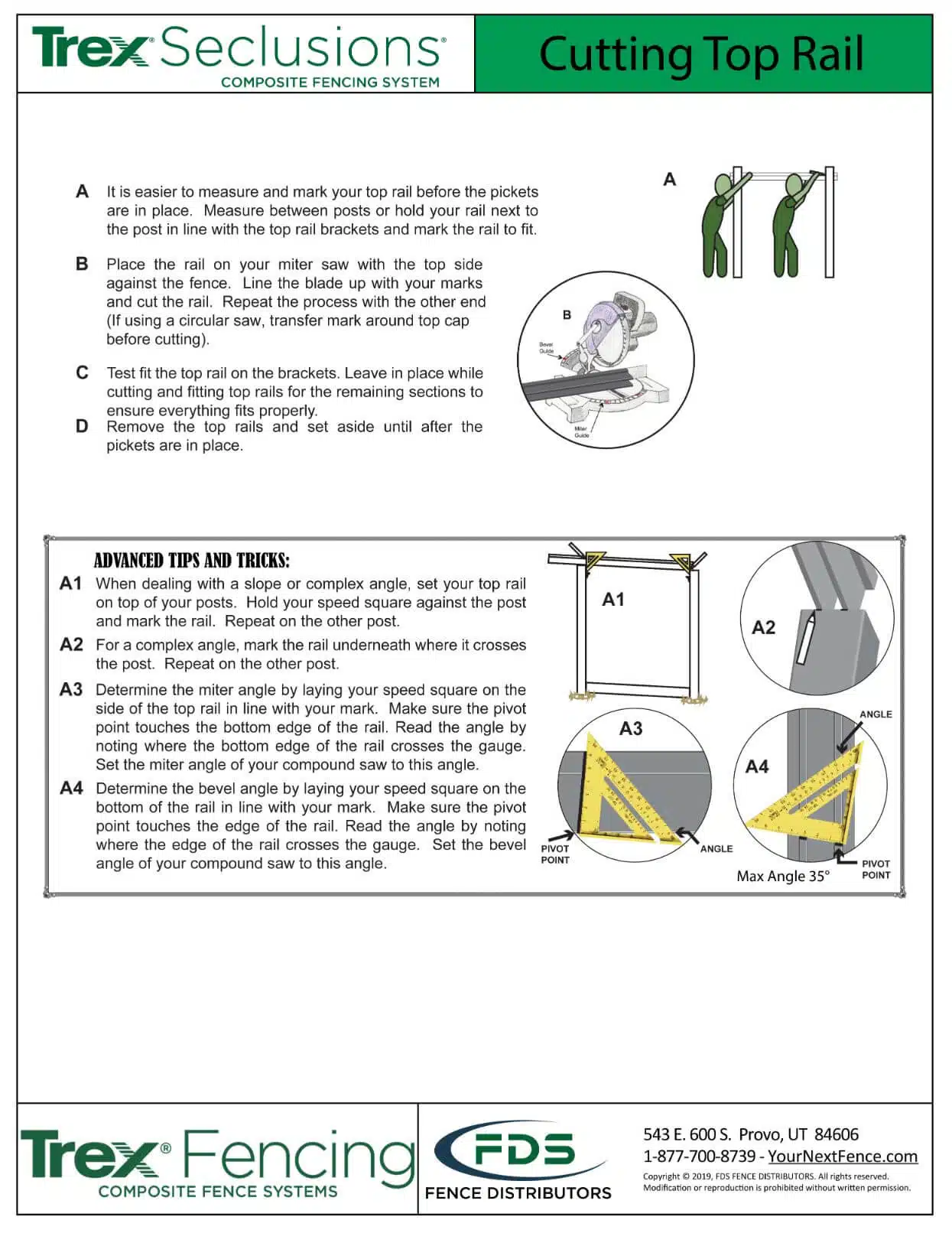

TOP RAIL CUTTING

>> Seclusions Install Guides 5

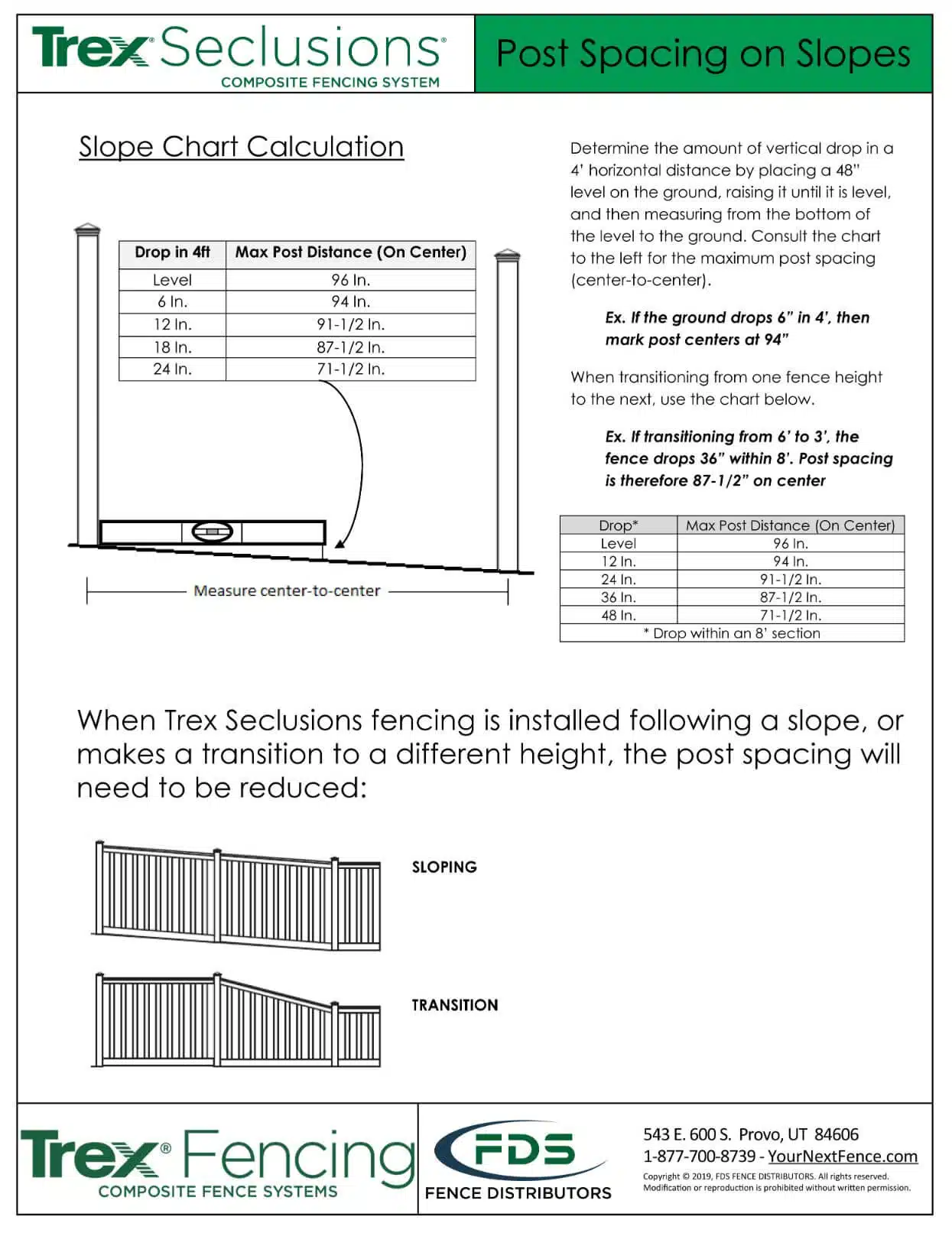

POST SPACING ON SLOPES

Post Spacing On Slopes

BRACKETS ON SLOPES

>> Seclusions Install Guides 6

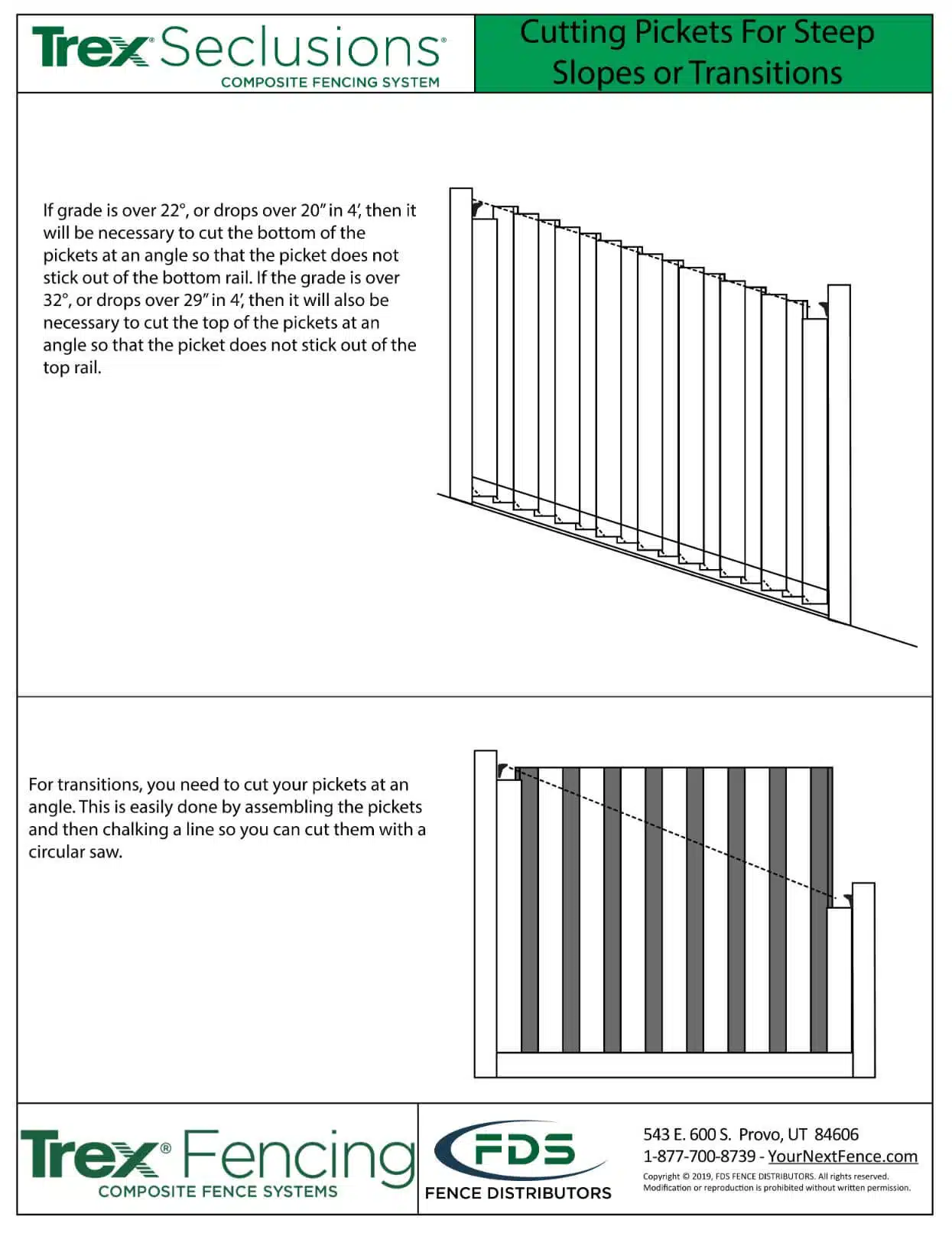

PICKETS ON STEEP SLOPES

>> Seclusions Install Guides 7

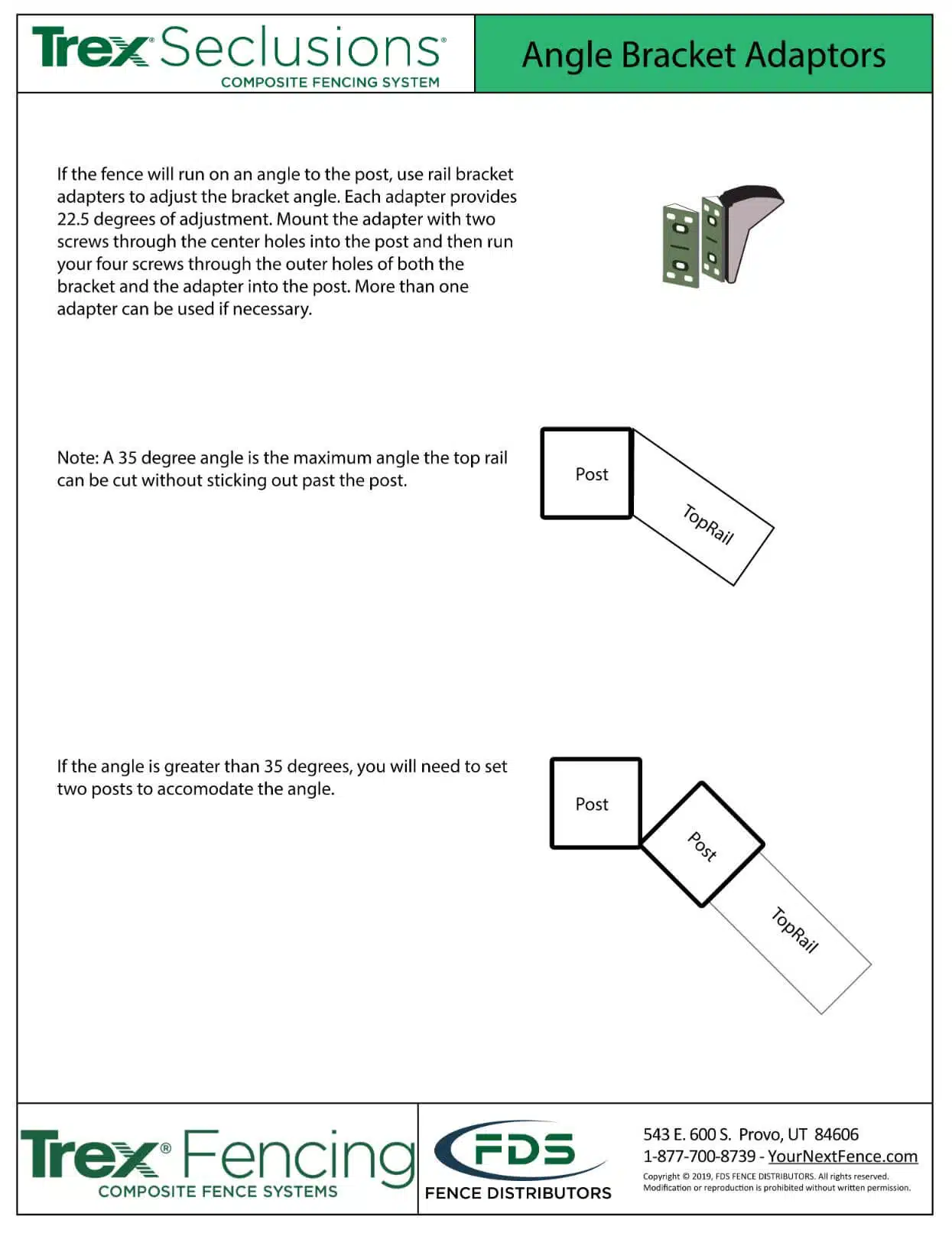

ANGLE BRACKET ADAPTERS

>> Seclusions Install Guides 8

GATE ADJUSTMENT

>> Seclusions Install Guides 9

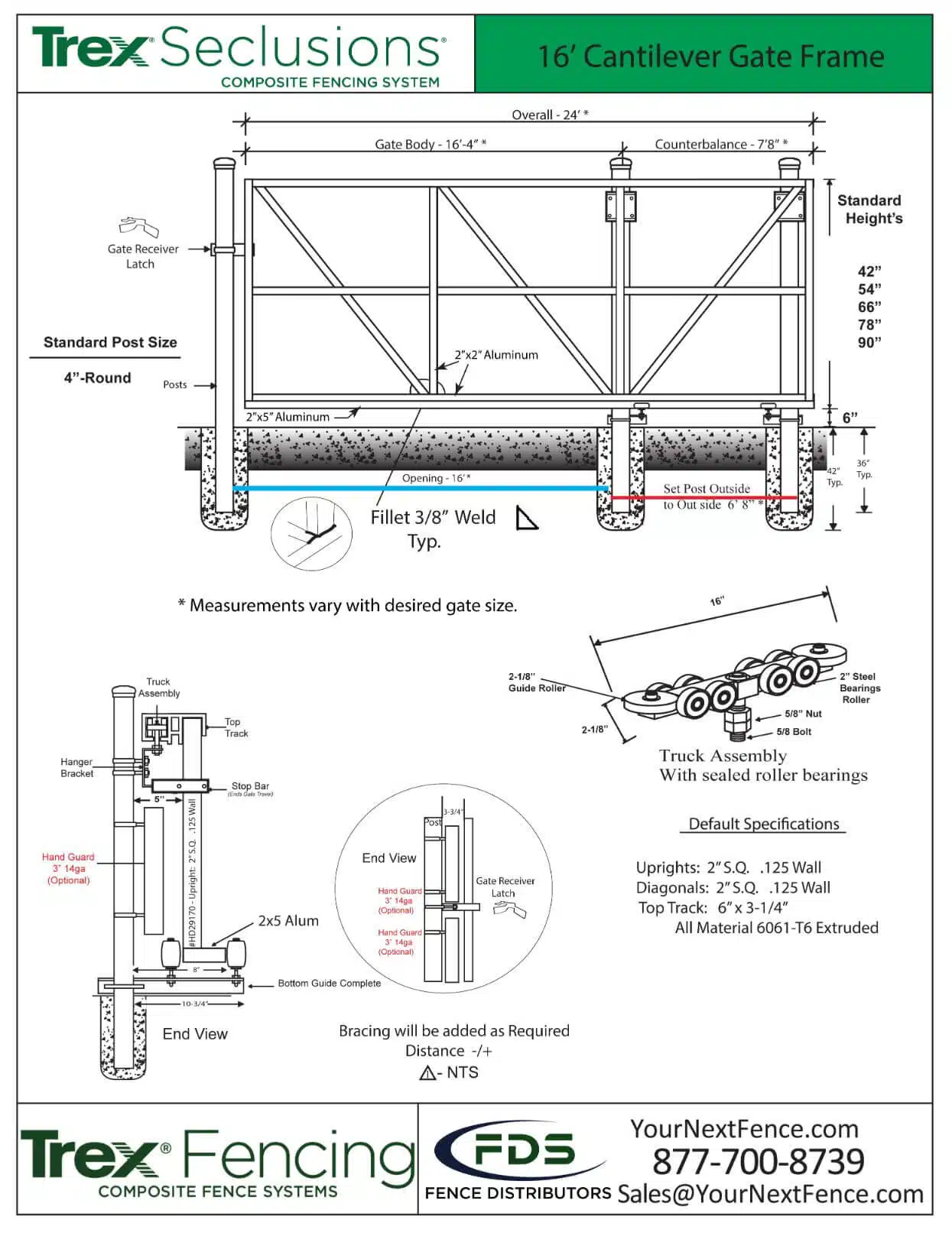

CANTILEVER GATE FRAME

>> Seclusions Install Guides 10

CANTILEVER GATE ATTACHMENT

>> Seclusions Install Guides 11

SLOPING SURFACE ATTACHMENT

>> Seclusions Install Guides 12

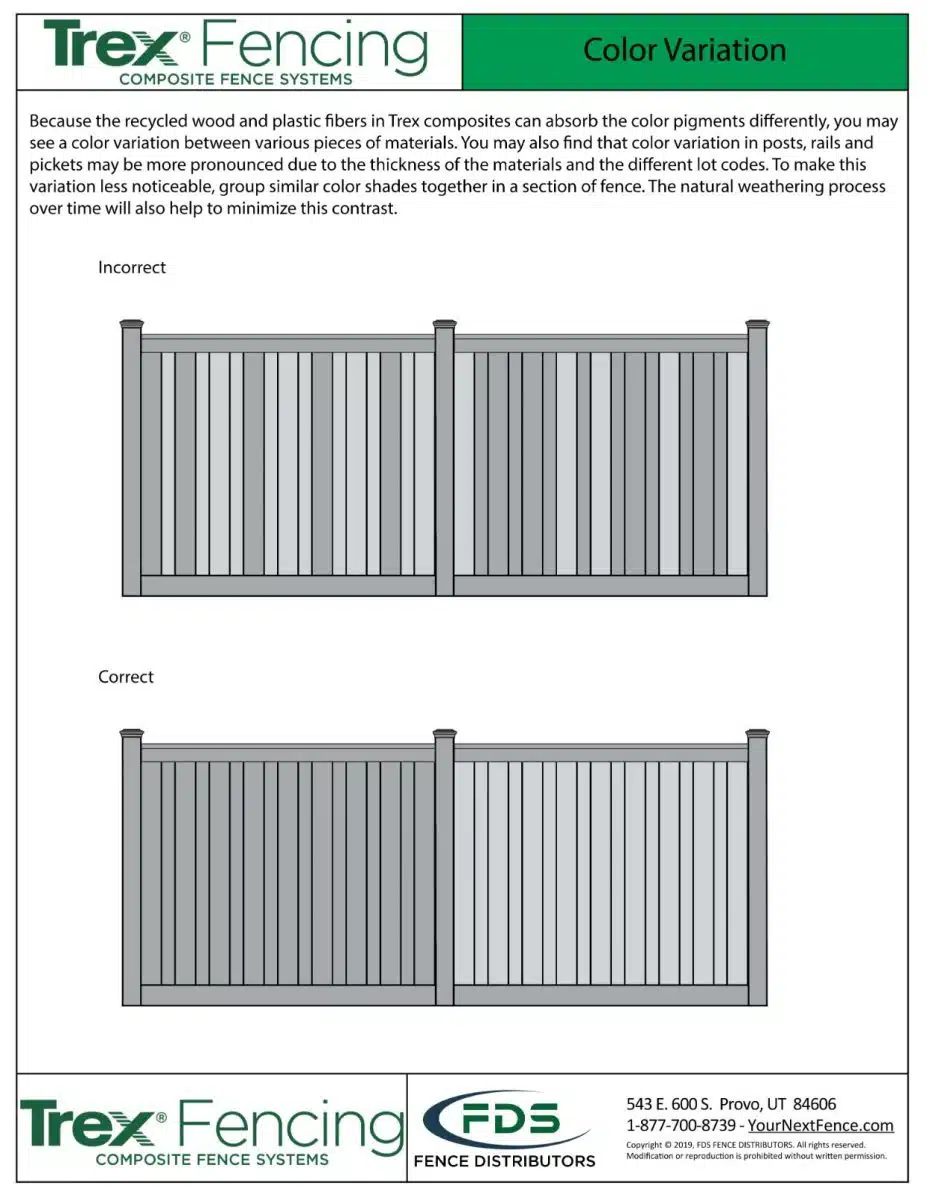

COLOR VARIATION ADJUSTMENT

>> Seclusions Install Guides 13

LONG SECTION SOLUTION

>> Seclusions Install Guides 14

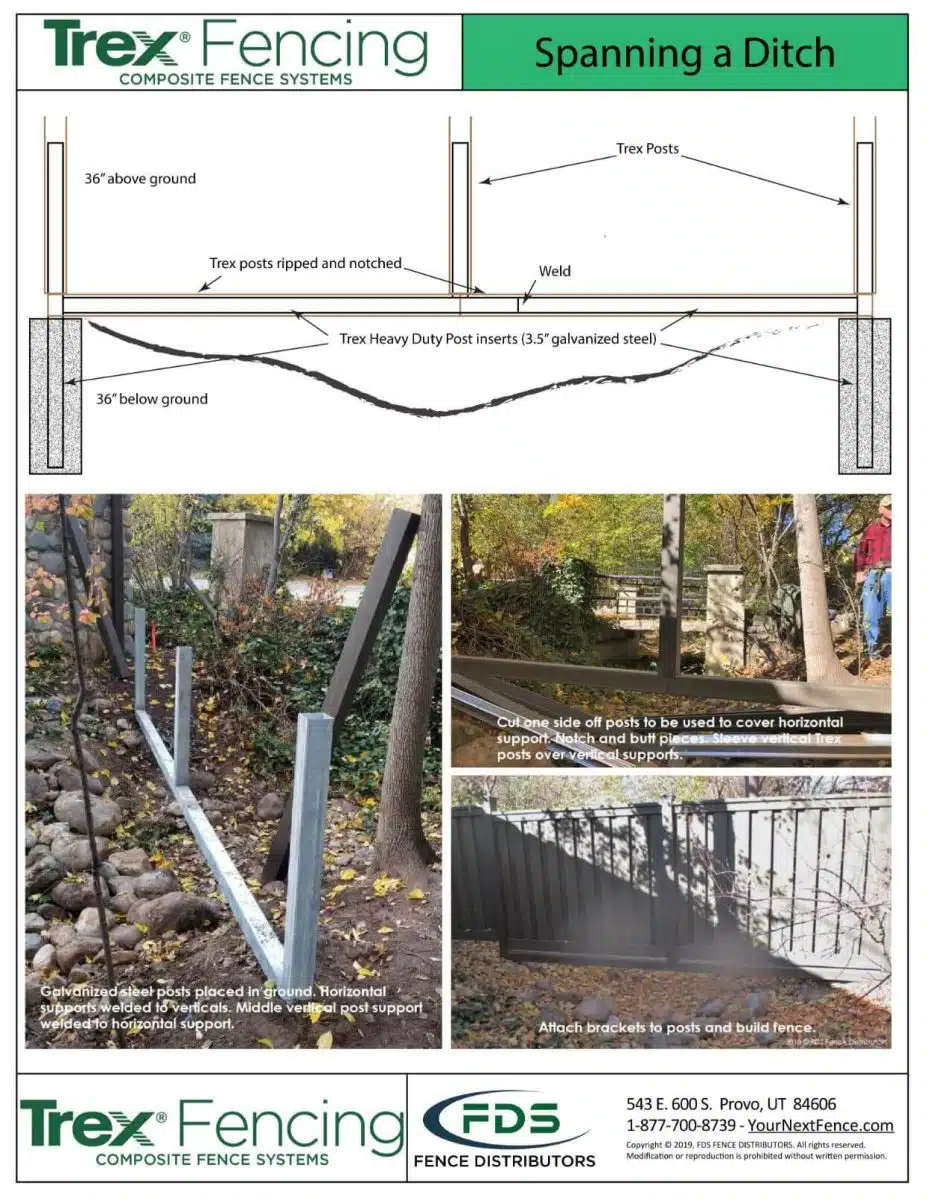

DITCH SPANNING

Instructions for Trex Fencing Spanning a Ditch

INSTALLATION VIDEOS

Brief Install Overview

Seclusions Install Video

Seclusions Install Video (Spanish)

Brief Install Overview (Animated)

Seclusions Install Video (Animated)

Seclusions Install Video (Spanish, Animated)
