Trex Shenandoah

RAIL FENCE SYSTEM

Why Choose Trex Fencing with the Shenandoah™ Rail Fence System

Shenandoah™ delivers an open, ranch-style look using composite rails and routed posts for fast, clean installs. Choose 2-, 3-, or 4-rail configurations to match your property and sightlines while keeping maintenance to a minimum.

The system’s FDS-patented multi-cell rail insert joins two composite rails into a sturdy 2″×6″ profile with controlled flex. For added rigidity, an optional 1.25″ steel rail tube can be inserted—ideal for livestock pressure and high-traffic perimeters.

Posts are set on efficient centers and the fence follows natural grades for smooth lines. With composite materials, there’s no painting or sealing, and day-to-day upkeep stays easy—perfect for acreage, HOAs, and commercial sites.

Shenandoah™ Rail Fence Highlights

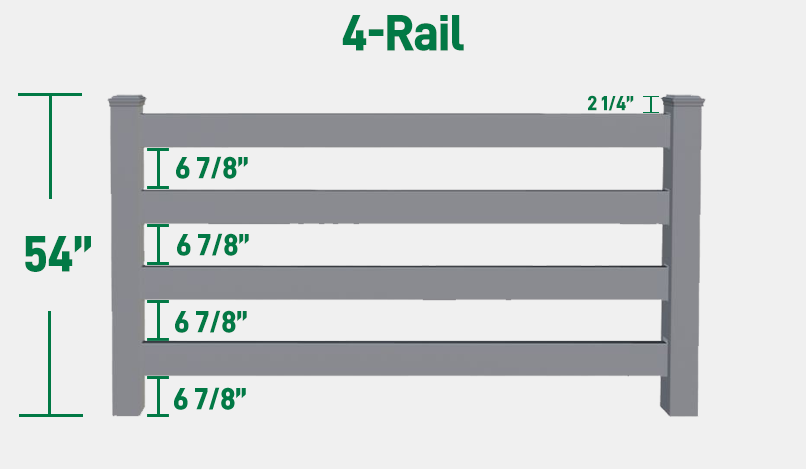

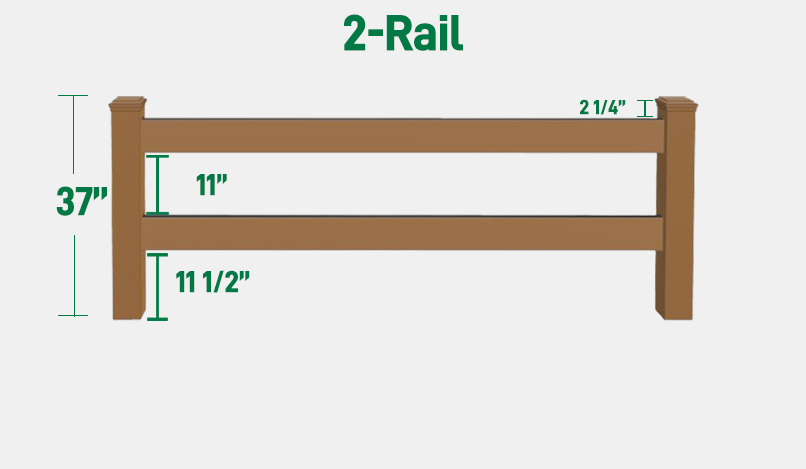

Classic open design in 2-, 3-, or 4-rail configurations—ideal for ranches, residential front and backyard accents, perimeters, and commercial sites.
FDS-patented multi-cell rail insert creates a sturdy 2″×6″ composite rail; optional 1.25″ steel tube adds extra rigidity.

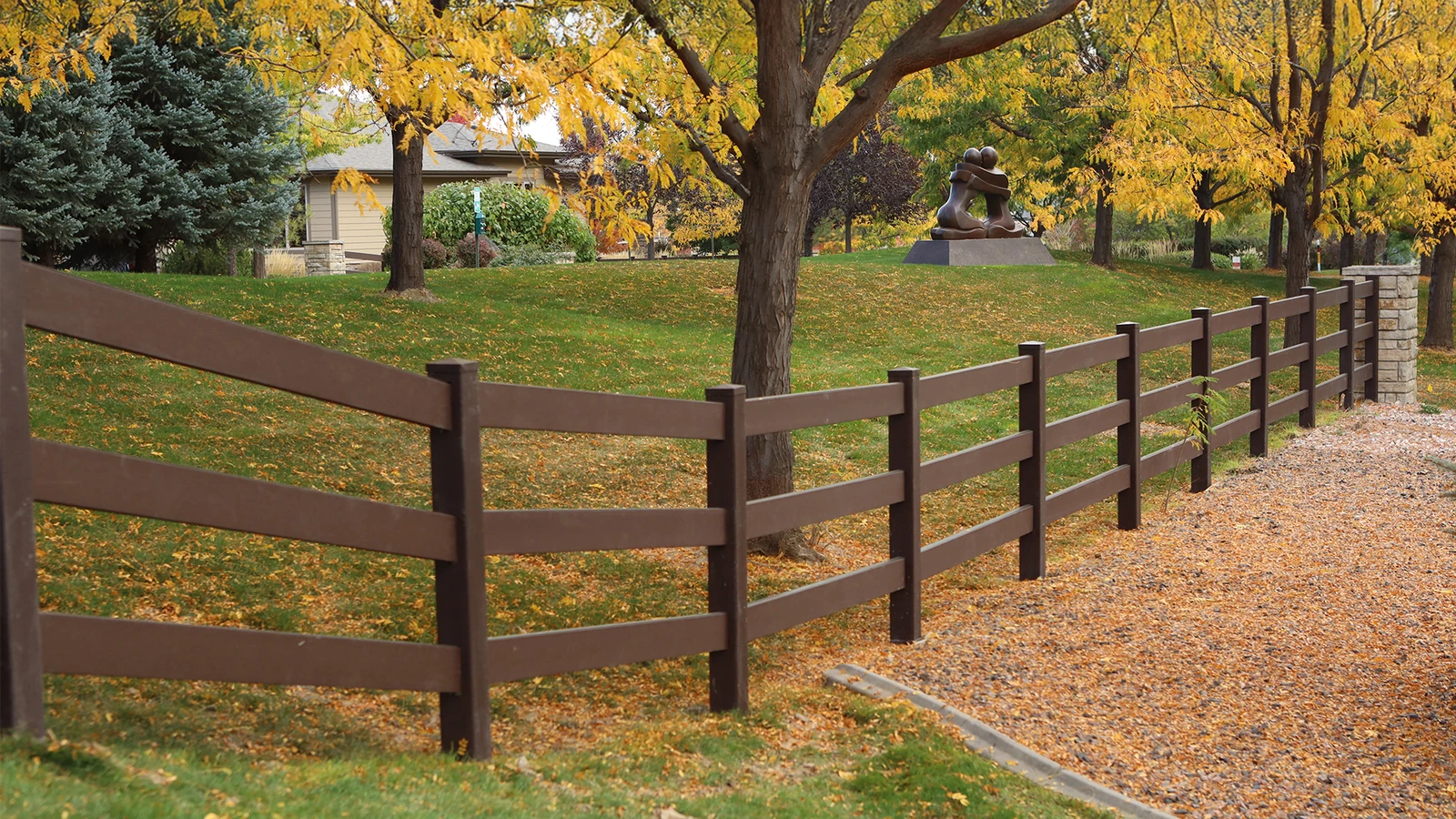

Follows natural slopes with clean, consistent spacing for a refined ranch aesthetic.
No painting or sealing required; composite components are low-maintenance and insect-resistant.
Available colors: Woodland Brown, Saddle, Winchester Grey and Charcoal Black.
Fast, straightforward installation with routed posts and fewer parts than privacy systems.

Trex Fencing Comes in Four Colors

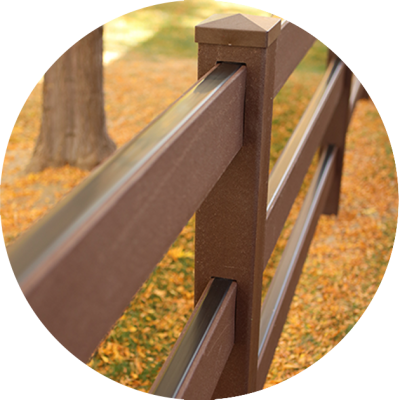

Woodland Brown

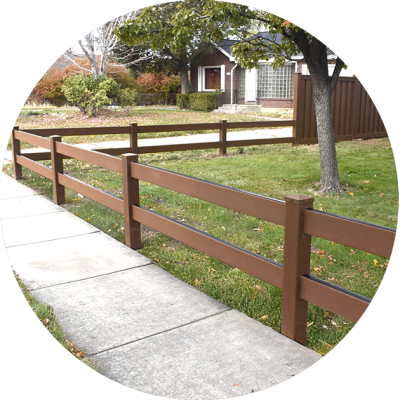

Saddle

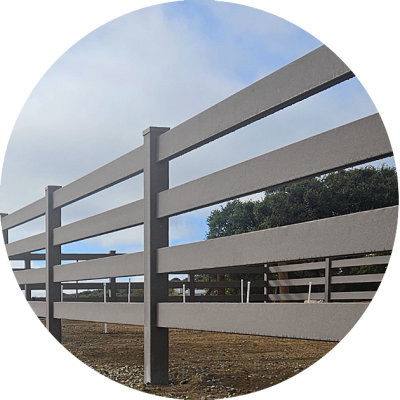

Winchester Grey

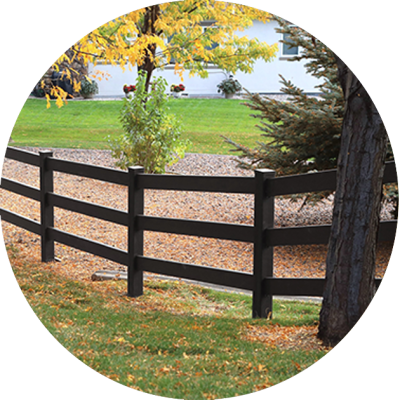

Black

Get Trex Fencing Pricing

We’ll connect you with a Trex Fencing specialist or contractor in your area.

1. Contact details (required)

2. Project details (optional)

Your Name*

Your Email*

Phone Number*

State / Province*

Optional – tell us more about yourself and your project.

Postal Code

Company Name (optional)

I am a...

Inquiry Reason

Tell us about your project (extra details)

Virtues of Trex® Shenandoah™ Rail Fence

Follows the grade and contours of your property.

Won't rot splinter.
Won't become food for termites.

Won't need seasonal painting, sealing, or staining.

Has an industry leading warranty.

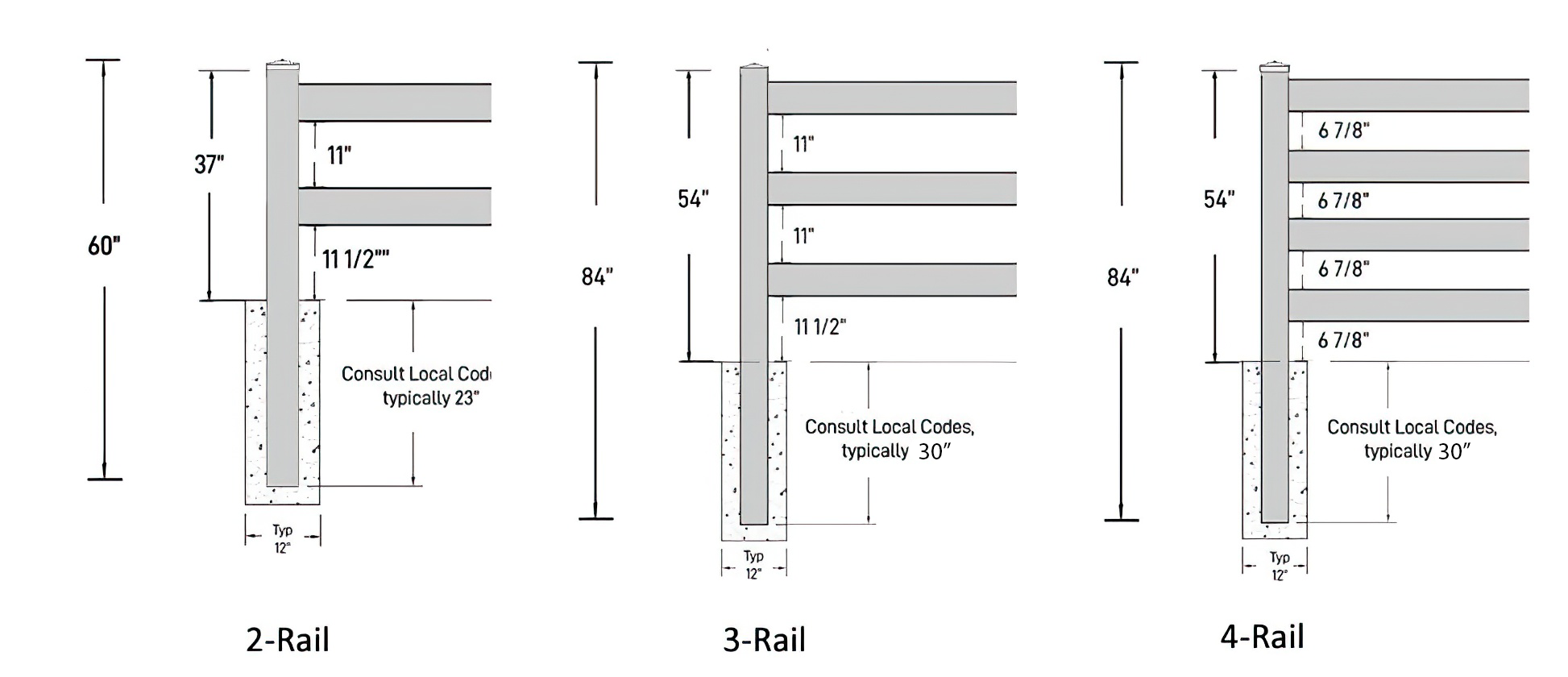

Installation Overview

For full installation resources, click here.

Note: Posts are 92.25″ on center.

Shenandoah Fence Components

Crown Cap
	Decorative post cap that finishes the look and helps keep water and debris out of the post core. Pairs with Shenandoah ranch-rail posts for a clean, finished top.

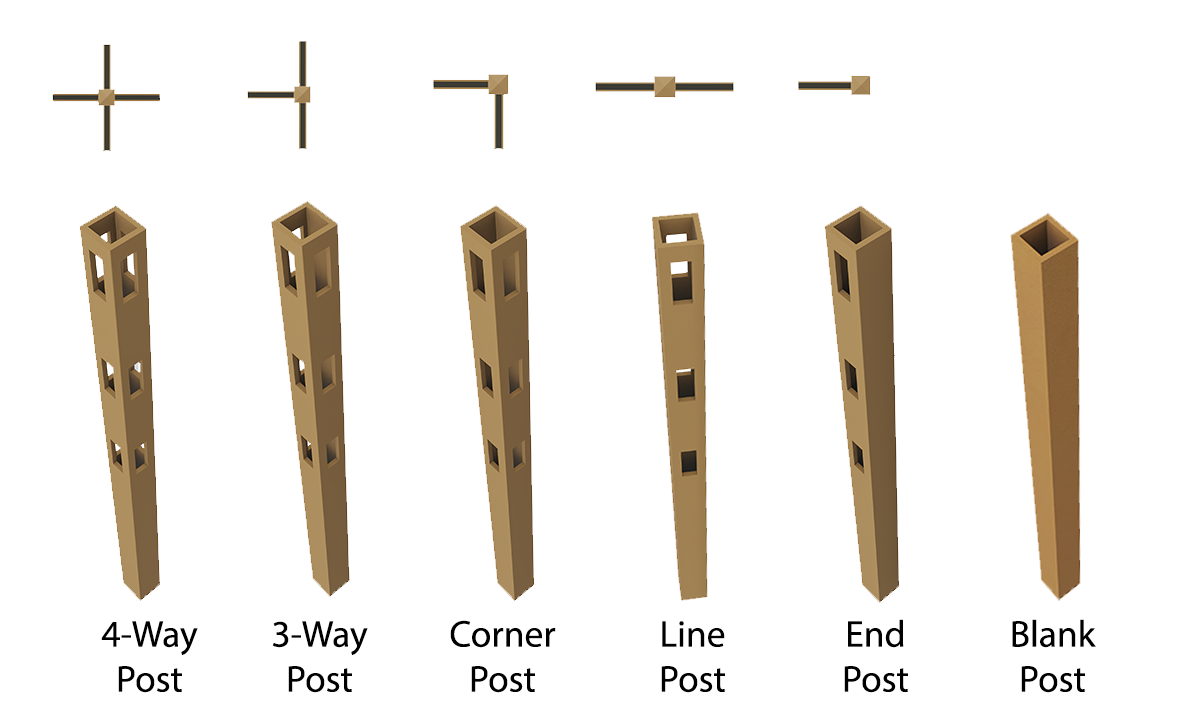

Ranch Rail Post
	Routed post designed for 2-, 3-, or 4-rail Shenandoah layouts. Accepts rail components for fast, consistent installs and smooth, open sightlines.
Rail Insert
	Multi-cell insert that joins two composite rail members into a sturdy 2″×6″ profile, providing strength and controlled flex for everyday use and livestock pressure.
Picket
	Trex composite board with an interlocking edge profile used across Trex fencing systems. Ideal when pairing Shenandoah with privacy sections or for custom transitions and gates.
Rail Stiffener (optional)
	Optional 1.25″ steel tube that slips into the rail assembly to add extra rigidity—useful for long runs, high-traffic areas, or where additional strength is desired.
Rail Clip (optional)
	Optional clip that helps retain and align rail components during assembly, especially helpful on angled sections or complex layouts.
